Unable to Create a Report, Chart, or Matrix from the Overview or Relationships Window

If you’re unable to create a Report, Chart, or Matrix from the Overview or Relationships window in Mavim Manager, the issue is likely due to display settings.

Overview Window Settings:

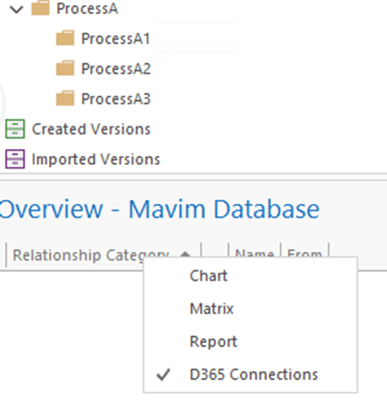

  1. Right-click on the Relationship Category column.
  2. A menu will appear with options to show/hide Charts, Matrices, and Reports.
  3. If these options are disabled, the right-click menu will not show creation options.

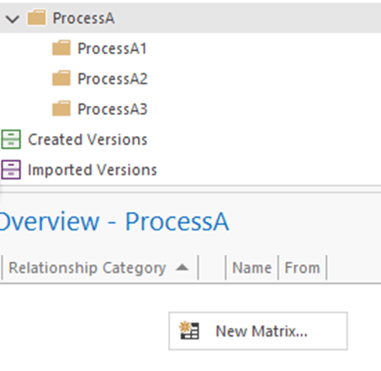

  4. For example, enabling only Matrix will allow matrix creation but not charts or reports.

Relationships Window Settings:

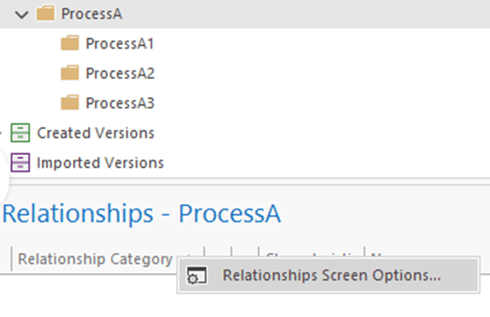

  1. Right-click on the Relationship Category column.

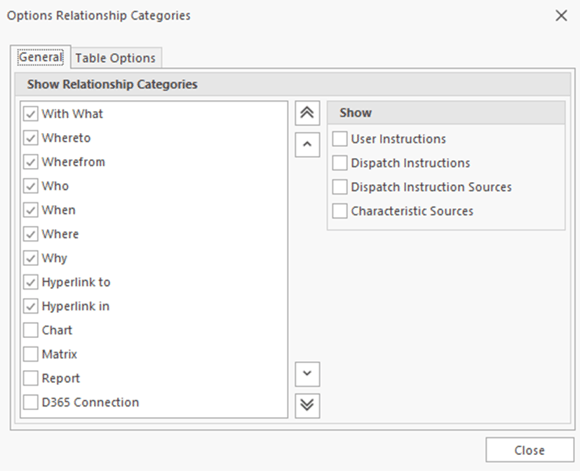

  2. Select Relationship Screen Options.
  3. In the window that appears, ensure Charts, Matrices, and Reports are enabled.
  4. If disabled, you won’t be able to create these items via right-click.

Alternative Method:

Even if these options are disabled, you can still:

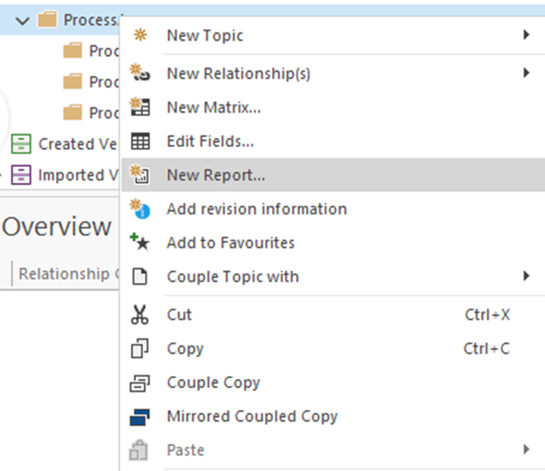

  • Right-click directly on the topic (if you have editing rights) to create a Report or Matrix.

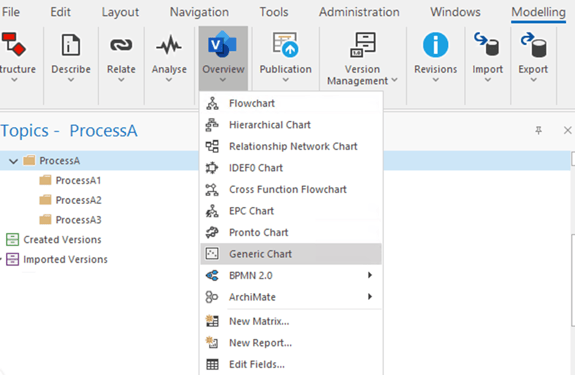

  • Create a Chart by selecting the topic and navigating to Modeling → Overview.
