Discovery tab When you open up your Mavim Process Mining -- KA-01280

When you open up your Mavim Process Mining report; you land on the Discovery Page.
This report page is the starting point and the center of your process mining analysis and will help you to understand and analyze your business processes and to capture complete transparency about their execution.

On the Discovery Page; the Process Analyzer visual provides an overview on your process as a whole; all path and branches.


Discovery - Process Analyzer

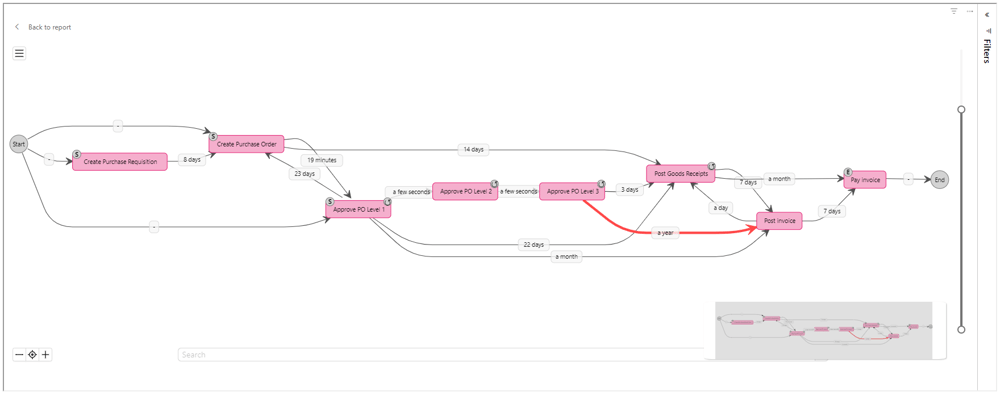

With the Mavim Process Analyzer; your business process is visualized automatically in a process flow. The Process Analyzer visual is the most important Mavim Custom Visual. You can find it on almost every report page. The Process Analyzer's goal :

  • Show you different aspects of your process flow.
  • Evaluate and understand your as-is process performance including all paths and branches.
  • Enable you to filter for individual process steps or paths to gain deeper insights.

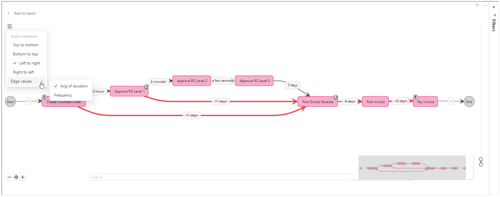

The process analyzer has edges and edge labels:

  • Edges means the paths of the process flow and connects the sequence of two activities together.
  • Edge labels provide essential information on each process step sequence and shows the duration and the frequency of the occurrence.



Discovery - Case Viewer

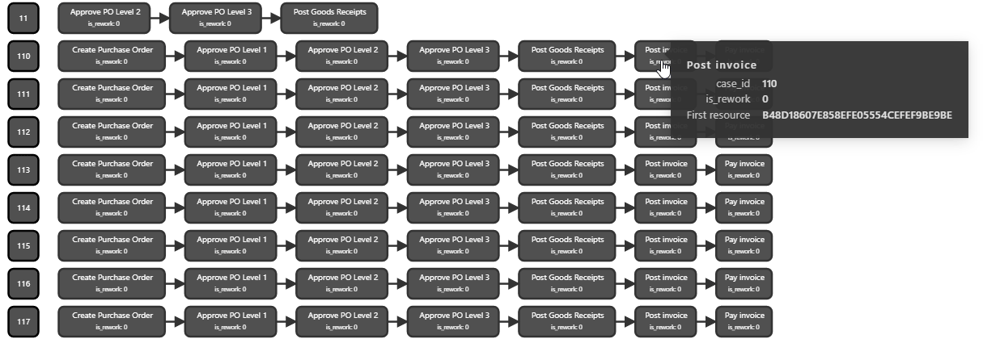

The Case viewer provides an important overview on each unique case and its sequence of activities that are executed in the process flow. Additional data attributes can be added to be shown in the Cases Viewer visual such as the resource and its rework count.

The Case Analyzer visual is by default disabled in the Discovery Page. It can be enabled on the bottom left of the report page by clicking on the CASE VIEWER toggle switch.

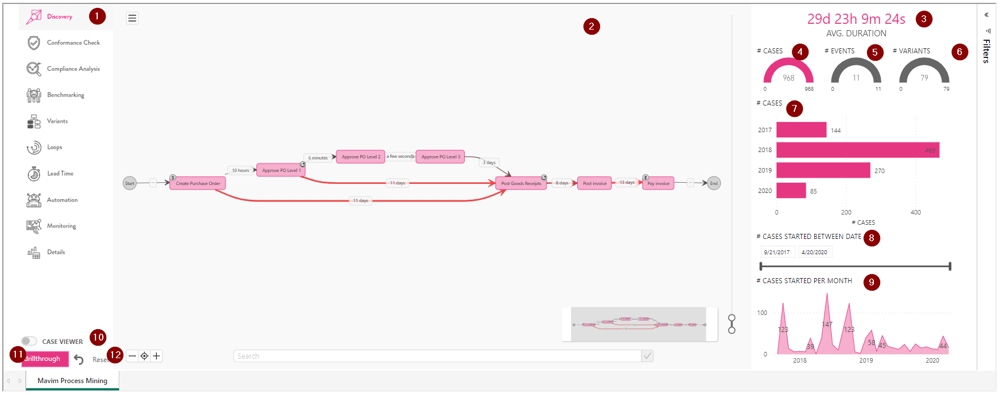

Discovery report overview


1. Menu
Use the buttons in the menu to navigate between pages in the Mavim Process Mining.
2. Process Analyzer visual
With the Process Analyzer visual you visualize the process flow and all its variations.
3. Avg Duration
The average duration of the selected cases is shown.
4. #Cases
The number of unique case identifiers is shown and depending on your selection or filtering the gauge will show its corresponding amount of unique case identifiers.
5. #Activities
This shows the unique count of activities that are executed in your analysis based upon the event log.
6. #Variants
This shows the amount of unique process sequences from the total event log. Depending on the selection the gauge will show its respective amount of unique process variants.
7. Number of cases per year
8. #Cases started between
Use this filter option to select a time period to filter the case ids.
9. #Cases started per month
This gives you a visual representation of the cases and at which moment in time they where started. It allows you to discover process anomalies.
10. Case viewer
Activate the toggle switch to dive deeper into to each unique case identifier.
11. Drillthrough
Use this button to apply certain filtering on the Discovery tab and include this filtering into another report page for further process analysis.
12. Reset
Use this button to reset all filtering options and start from scratch on this report page.
