How to Export Data from the Mavim Database

1. XML Export

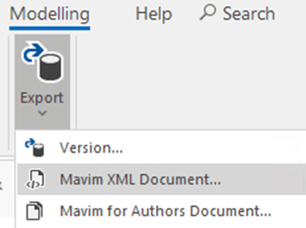

• Navigate to Modeling → Export → Mavim XML document.

• This export is suitable for technical use or integration with other tools.
• Note: You may need to modify the XML to match the requirements of your target environment.
• For technical details, refer to the documentation starting from page 50 under “15 XML”.

2. Word Publication

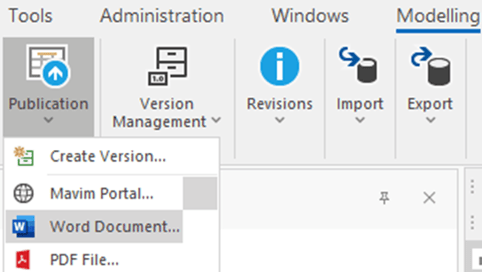

• Go to Modeling → Publication → Word document.

• This export is ideal for documentation or reference purposes.
• You can also use this method to export Visio charts.

Exporting Charts via Word:

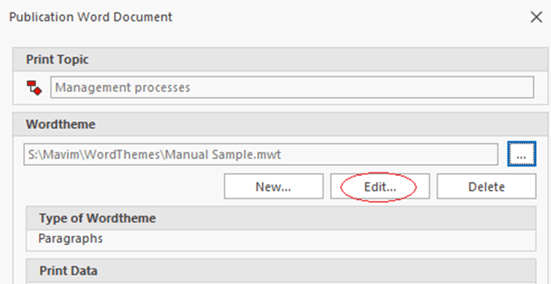

1. In the Word publication screen, click Edit under Word theme.

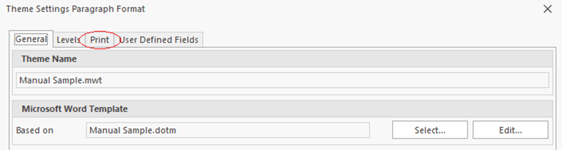

2. Go to the Print tab.

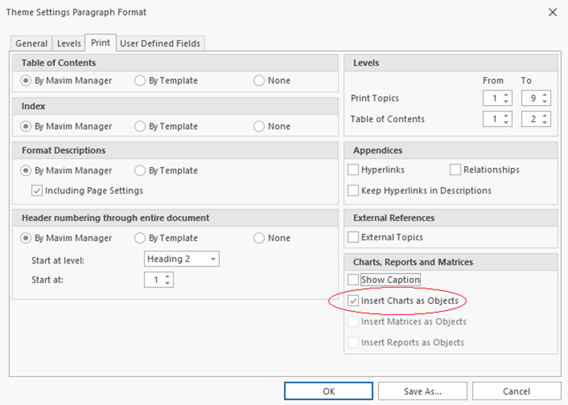

3. Check Insert charts as objects.

4. After generating the Word document:

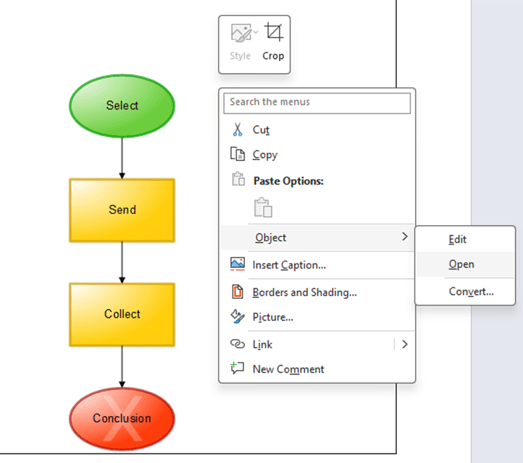

   • Right-click a chart → Object → Open.

   • The chart opens in Visio, where you can save it as a .vsdx file.

3. Exporting a Single Chart

• Open the chart in Mavim Manager.

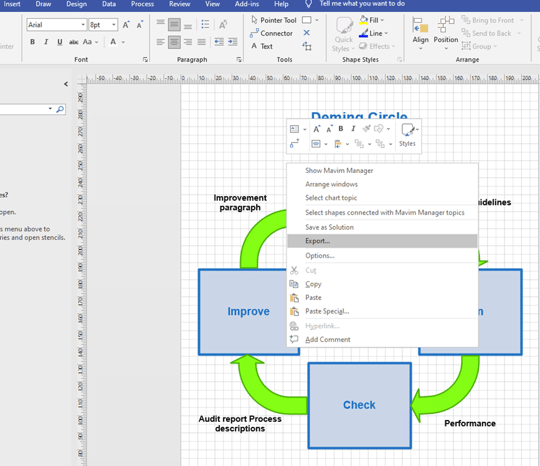

• Right-click on the drawing sheet → Export.

• Save the chart as .vsd or .vsdx on TempDisk (downloads directly to your local folder).

If TempDisk gives an error:

• Save the file to the H:\ or S:\ drive in the Cloud.
• Then download it manually to your local environment.
