How to speed up loading
Instead of opening the full diagram with all views at once, you can choose to load only a single view.
Option 1: Open a selected view from the prompt
-

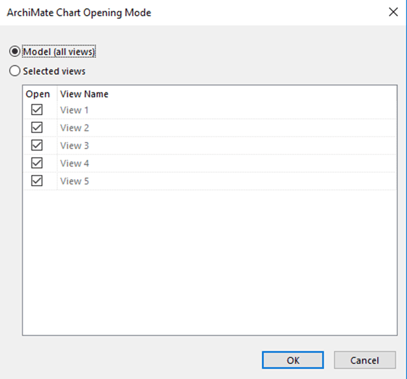

When opening an ArchiMate chart with multiple views (for example, 5 views), a selection window will automatically appear.
-
In this window, choose Selected views.
-
Select only the view you want to open.
-
Tip: Select all items first, then press the space bar to deselect everything at once.
-
Next, click the specific view you want and check it to open only that one.
-
Option 2: Open a view directly from Mavim Manager
-

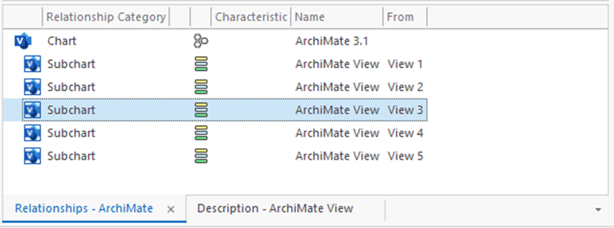

In Mavim Manager, locate the subschema under the relationship category.
-
Double-click the subschema to open a single ArchiMate view directly.
Notes
-
Opening fewer views reduces load time significantly.
-
If you consistently work with the same view, it is more efficient to open it directly from the Manager.
